Android Source Project

The Android source project for Jasonelle. It is a native Kotlin app (Jetpack Compose) that renders a website inside a WebView and bridges JavaScript calls to native Kotlin plugins through a bidirectional message channel, mirroring the iOS (Xcode) implementation.

Repository layout

Path Contents

gradlew, gradle/

Gradle wrapper used to build every module.

settings.gradle.kts

Declares the modules: :Application, :JLKernel and the four plugins. A new plugin is invisible to Gradle until it is added here with include(":JLPluginYourName").

Application/

The Android app module. Contains the Compose MainActivity, ContentView, the plugin registry, assets (config.jsonc, webview.js) and the AndroidManifest.xml.

JLKernel/

The core library: JasonelleWebView, Coordinator, JasonelleBridge, Plugin, Events, ConfigurationLoader, Logger, Version and License.

JLPluginHello/

A sample plugin that demonstrates the native–JavaScript bridge.

JLPluginDevice/

A plugin that reports device information to JavaScript.

JLPluginCookies/

A plugin that persists web view cookies in encrypted storage.

JLPluginOpenTelemetry/

A plugin that records OpenTelemetry counters and histograms.

local.properties

Local SDK path (gitignored, not committed).

Taskfile.yml

task build, task test, task assemble, task lint wrap the Gradle tasks.

Architecture

Jasonelle Android follows the same layered architecture as the iOS project. The Application module owns the activity lifecycle and the registered plugin instances. The JLKernel module provides the web view, the JavaScript bridge and the message routing. The plugins modules implement native features callable from JavaScript.

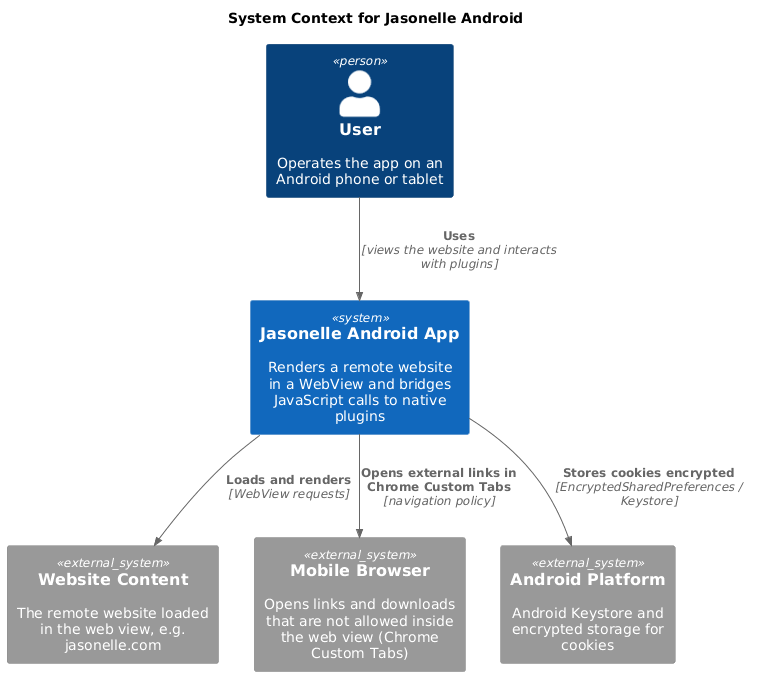

System Context (C4 L1)

android_c4_context

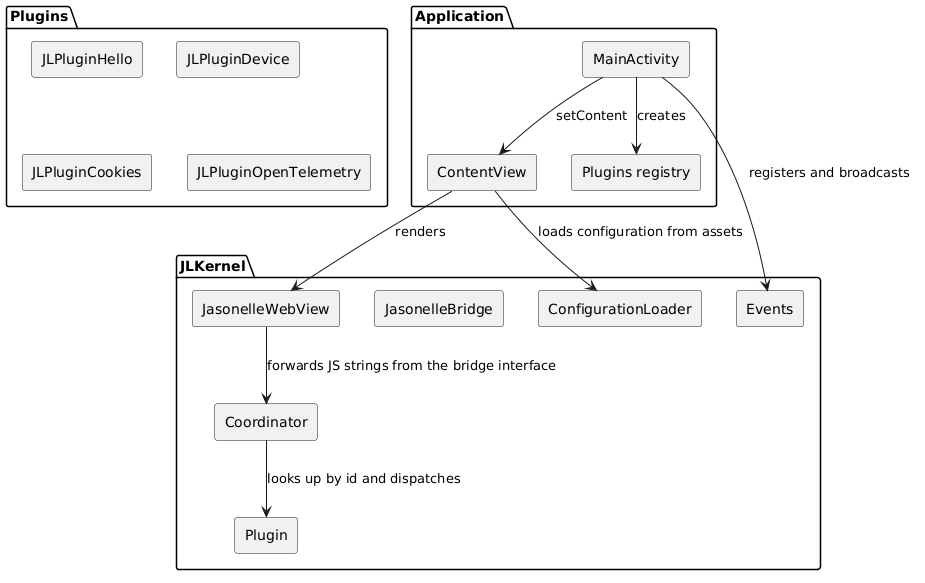

Containers (C4 L2)

android_c4_container

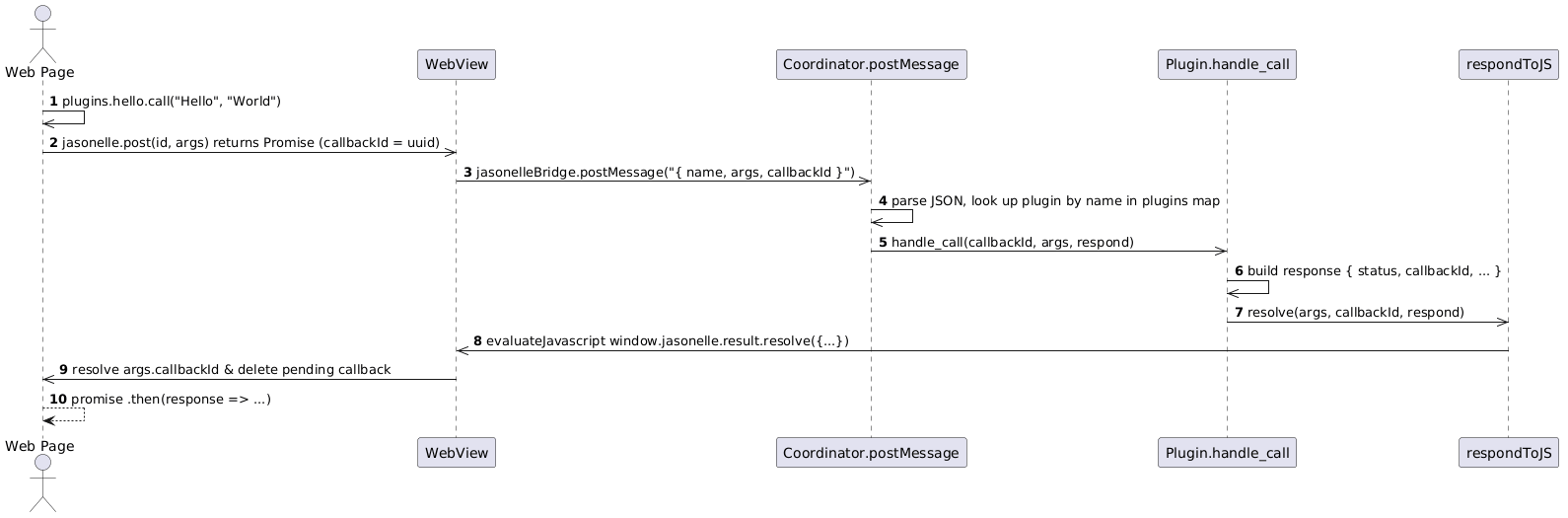

The JavaScript Bridge

The bridge is a bidirectional message channel between the page loaded in the WebView and native code.

  • The native side registers the Coordinator as a JavaScript interface named jasonelleBridge with addJavascriptInterface.

  • JasonelleBridge.JS_BRIDGE_SCRIPT defines window.jasonelle with post(name, args), result.resolve, result.reject and plugin.init.

  • Each plugin’s Plugin.js registers itself on window.jasonelle.plugins.<name>.

  • post stringifies { name, args, callbackId } and calls window.jasonelleBridge.postMessage(json).

  • The Coordinator.postMessage (@JavascriptInterface) parses the JSON, looks up the plugin and invokes handle_call(callbackId, args, respond). Plugins reply through resolve or reject, which evaluate window.jasonelle.result.resolve|reject(…​) back in the page on the main thread.

Because the bridge script also installs a window.webkit.messageHandlers.* shim, the same Plugin.js files work unchanged on Android and iOS.

android_js_bridge

The message body (JSON stringified by post) is:

{ "name": "com.jasonelle.plugins.hello", "args": ["Hello", "World"], "callbackId": "<uuid>" }

name is the plugin id (reverse domain notation), which is also the key in the plugins map registered by the application.

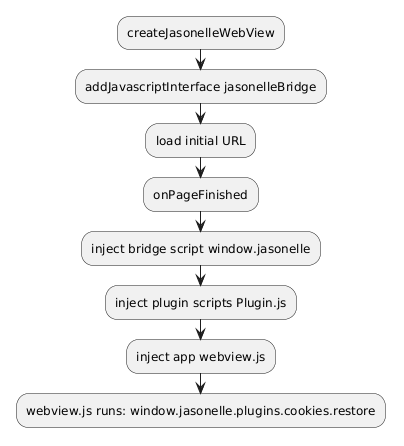

Script injection

Android WebView has no document-start/end user scripts, so the bridge, plugin and app scripts are all evaluated from onPageFinished, in the same order as iOS injects them. The jasonelleBridge native interface is available before the first load, so early page code can still call it.

android_script_injection

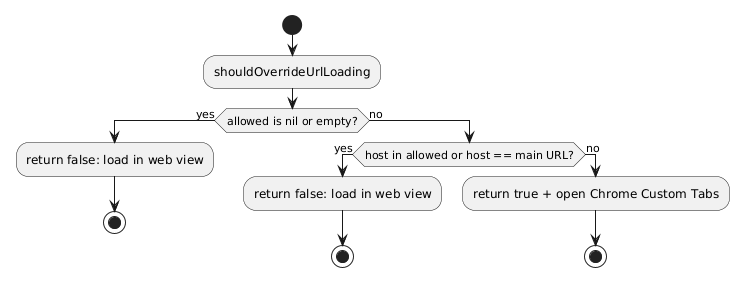

The app keeps the user inside the web view unless the destination is not allowed, in which case it opens Chrome Custom Tabs (falling back to a browser intent). Downloads are also handed to Custom Tabs.

android_navigation_policy

Downloads are opened in Chrome Custom Tabs:

android_navigation_download

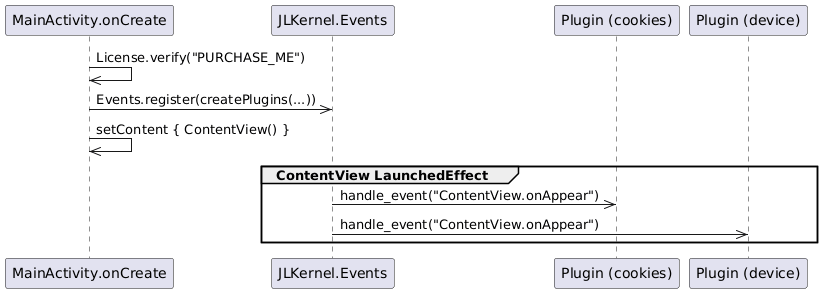

Native events

Native code notifies all registered plugins about lifecycle events. The app registers plugins in MainActivity.onCreate and broadcasts when the ContentView first appears:

android_native_events

JLKernel components

Component Responsibility

JasonelleWebView

Compose composable built on AndroidView; creates the WebView via createJasonelleWebView and loads the configured URL.

Coordinator

@JavascriptInterface receiver for JS messages, plus the navigation policy. handleMessage and decidePolicyForHost are extracted for JVM unit testing.

JasonelleBridge

Holds JS_BRIDGE_SCRIPT (injected into the page) and the interface name jasonelleBridge.

Plugin

Base class every plugin subclasses. Provides name/id defaults, handle_call, handle_event, the resolve/reject/event helpers and the js() loader that reads plugins/<name>/Plugin.js from assets.

Events

Enum of native events with a static plugin registry, register(plugins:) and sendOnAppear().

ConfigurationLoader

Loads config.jsonc from app assets, strips comments (// and /* */) and decodes it into AppConfiguration (urlString, inspectable, allowed).

Logger

Structured logging with LogLevel severities and Ratlog-format output via Ratlog.

Version

Reads the bundled VERSION resource and returns the semantic version.

License

Verifies a Jasonelle license key.

Plugins

Each plugin is an independent Gradle module that subclasses JLKernel.Plugin (imported as KernelPlugin to avoid the class-name clash). Plugins are composed by the Application in Plugins.kt, which instantiates them; the Cookies plugin receives the application Context. Keys must match the plugin id used in JavaScript (window.jasonelle.plugins.<name>).

Plugin Native API JS object

JLPluginHello

handle_call echoes a response

plugins.hello.call()

JLPluginDevice

handle_call returns device info

plugins.device.info()

JLPluginOpenTelemetry

handle_call performs metric recording actions

plugins.opentelemetry.counter(), histogram()

JLPluginCookies

handle_call stores/reads cookies in EncryptedSharedPreferences

plugins.cookies.save(), restore(), persist()

Development

  • Build all modules with task build (./gradlew assembleDebug).

  • Run task test (./gradlew test) for the JVM unit tests in every module (JLKernelTests, JLPluginHelloTests, JLPluginDeviceTests, JLPluginCookiesTests, JLPluginOpenTelemetryTests).

  • Build just the app APK with task assemble (./gradlew :Application:assembleDebug), output in Application/build/outputs/apk/debug/.

  • Run lint with task lint.

  • Every plugin ships a docs/<Plugin>.md file describing its native code and JavaScript bridge.
